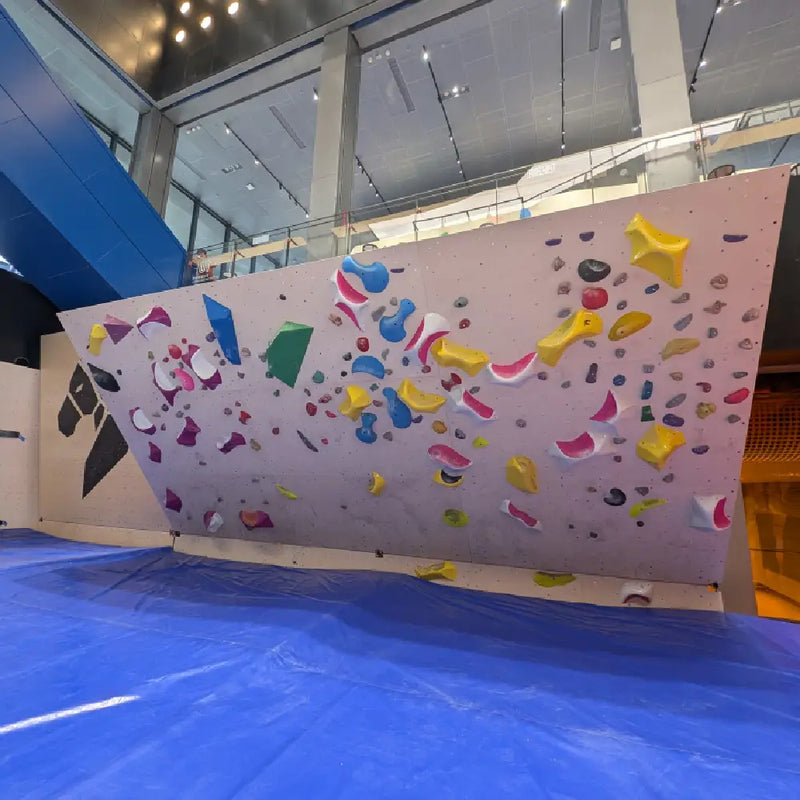

Commercial freestanding climbing walls designed for training boards and climbing gyms.
Adjustable from -5° slab to 70° overhang with no structural building modifications required
Our freestanding adjustable climbing wall is often the right solution for climbing gyms and training facilities that want to install a training board without any permanent construction.
This system makes sense if you:
All our freestanding climbing walls are designed from the ground up to function as high-performance training boards. Each system is available with adjustable configurations and is engineered to exceed the structural demands of modern climbing board training.

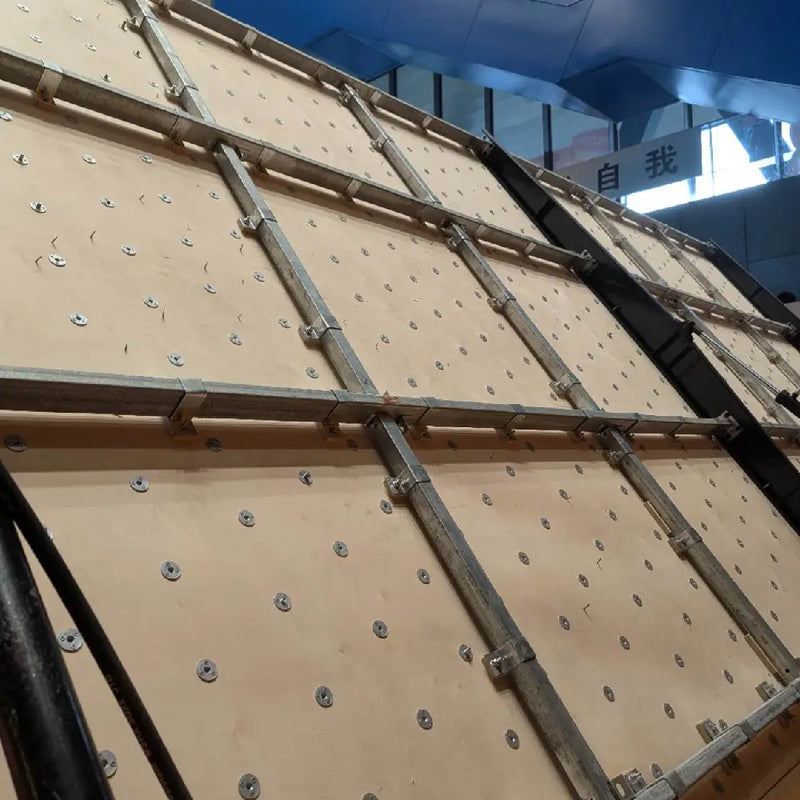

To meet commercial gym standards, every wall is fitted with premium birch plywood panels, delivering the durability, consistency, and feel expected in professional adjustable climbing wall environments.
Learn more about training board frames for Kilter Board, MoonBoard and spray walls.
We designed this freestanding climbing wall so you can install a training board or climbing wall without anchoring anything into your building.

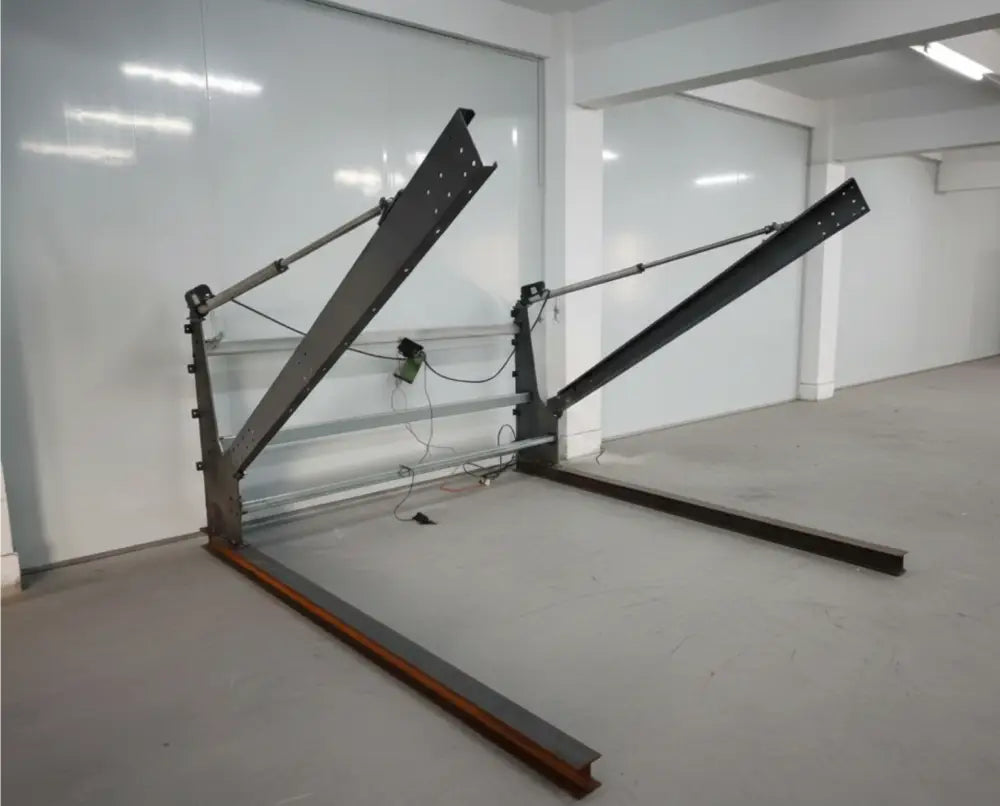

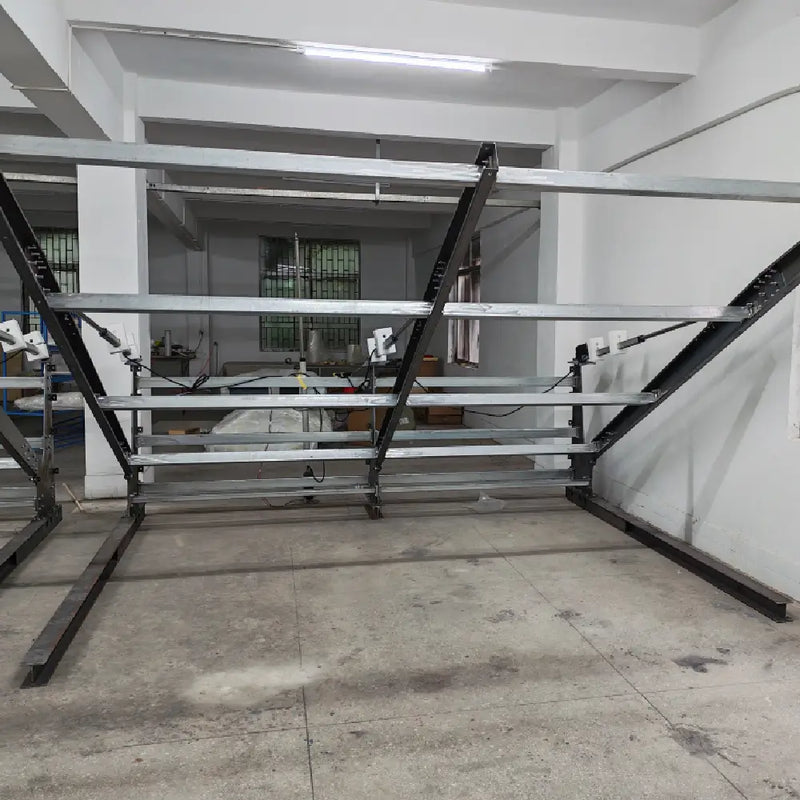

Instead of relying on permanent structural installations, the wall uses a structural steel frame that stands independently and remains stable under repeated climbing loads.
This means you can add climbing capacity to your gym, training facility, or home setup without modifying the building itself. If your facility layout changes in the future, the wall can move with you.

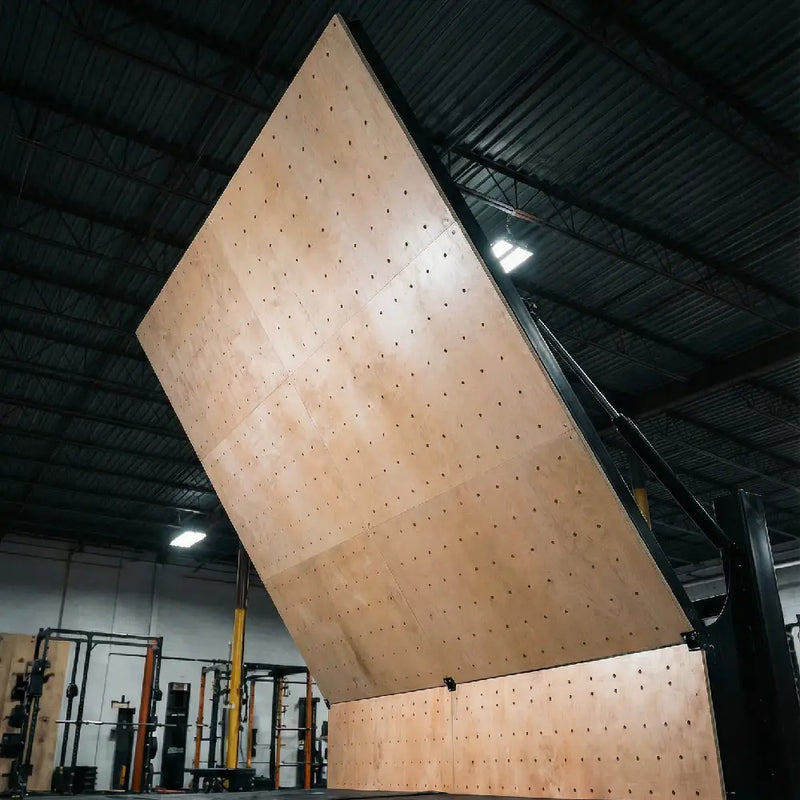

We built this system as an adjustable climbing wall so you can tailor the training angle to the style of climbing you want.
You can configure the wall in three formats depending on your needs:
• Static configuration
• Manual adjustment
• Hydraulic powered adjustment

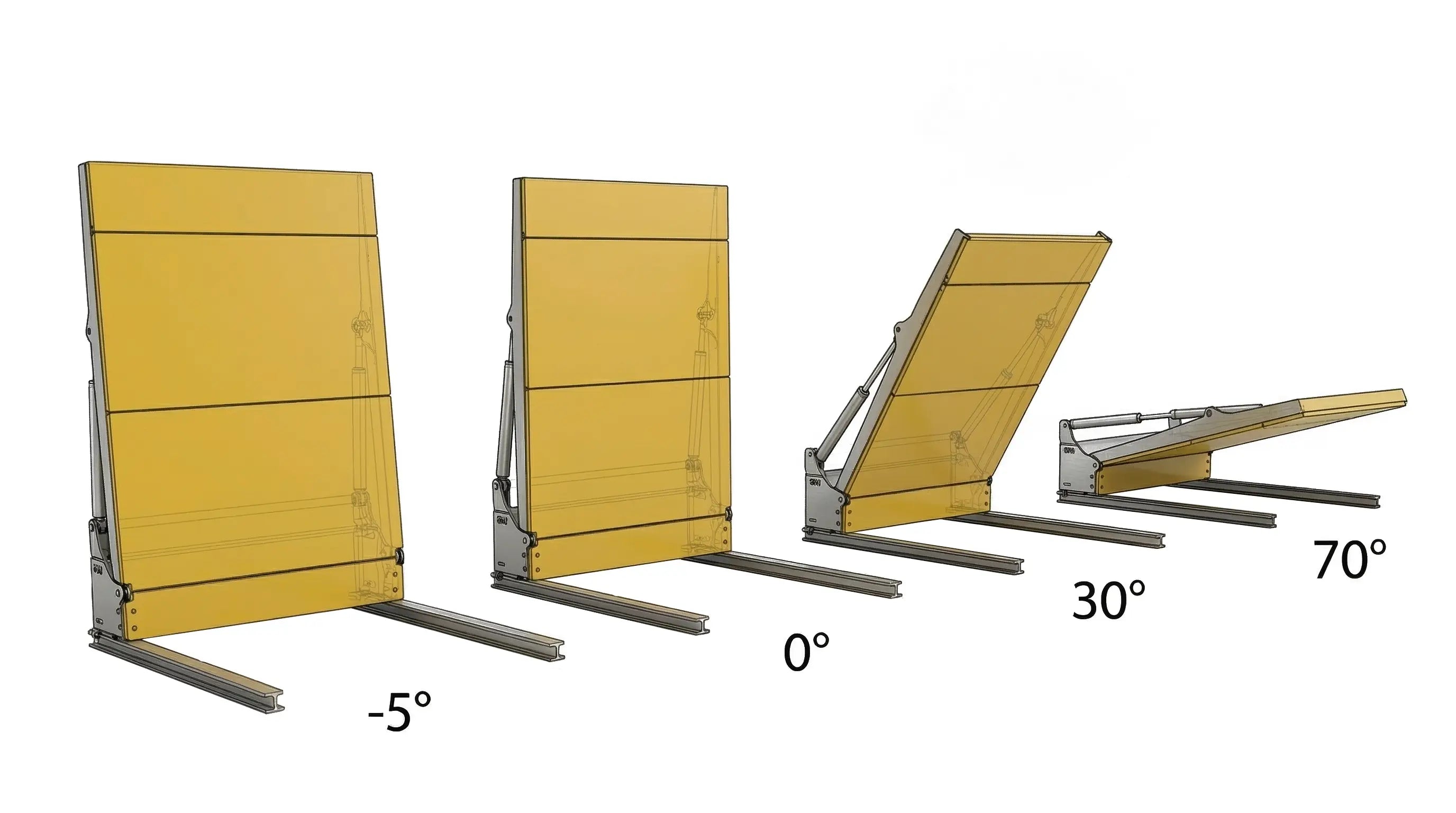

The wall adjusts from -0.5° slab through to 70° overhang. This flexibility allows you to support a wide range of climbing styles on a single freestanding climbing wall.
We designed this freestanding climbing wall so you can install any training board you want.
The wall supports all major system boards including Kilter Board, MoonBoard, Tension Board, and Walltopia boards. If you are using another board system, the wall is still compatible, we just need the drill pattern.
We built this adjustable climbing wall specifically for environments where powerful board climbing sessions happen every day.
Training boards generate significant dynamic loads from repeated jumping, cutting feet, and explosive movement. To handle this, the structure uses two industrial hydraulic systems, each rated to 3 tonnes of load capacity.

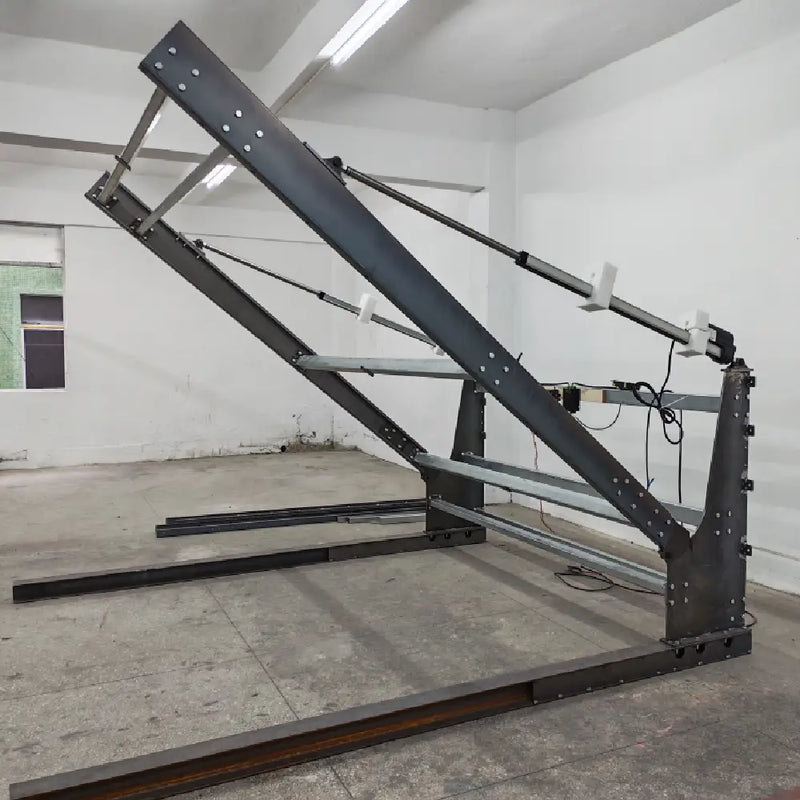

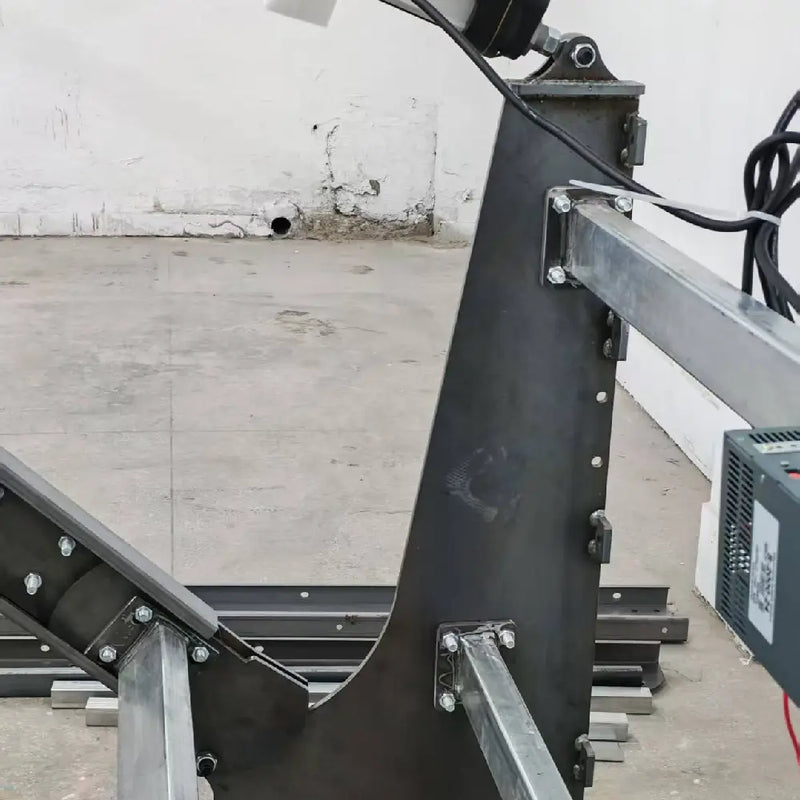

The frame itself is built from structural steel designed to handle repeated stress cycles, allowing the wall to maintain stability even during intense board climbing sessions.
This ensures the freestanding climbing wall performs reliably in commercial climbing gyms, training facilities, and performance centres.
When we designed this adjustable climbing wall, the goal was simple. The wall should never fail.
To achieve this, the system uses three independent safety mechanisms:
• Mechanical locking secures the wall at set angles during use
• Integrated emergency stop controls immediately halt hydraulic movement
• A physical failsafe catch system stops the wall if the hydraulic system ever fails
These redundant systems act as guardrails so that even in the unlikely event that one system fails, the wall remains secure.
This layered safety approach ensures your freestanding climbing wall remains stable and reliable during daily training and adjustment.
We built this freestanding climbing wall so you can install it without any construction work.

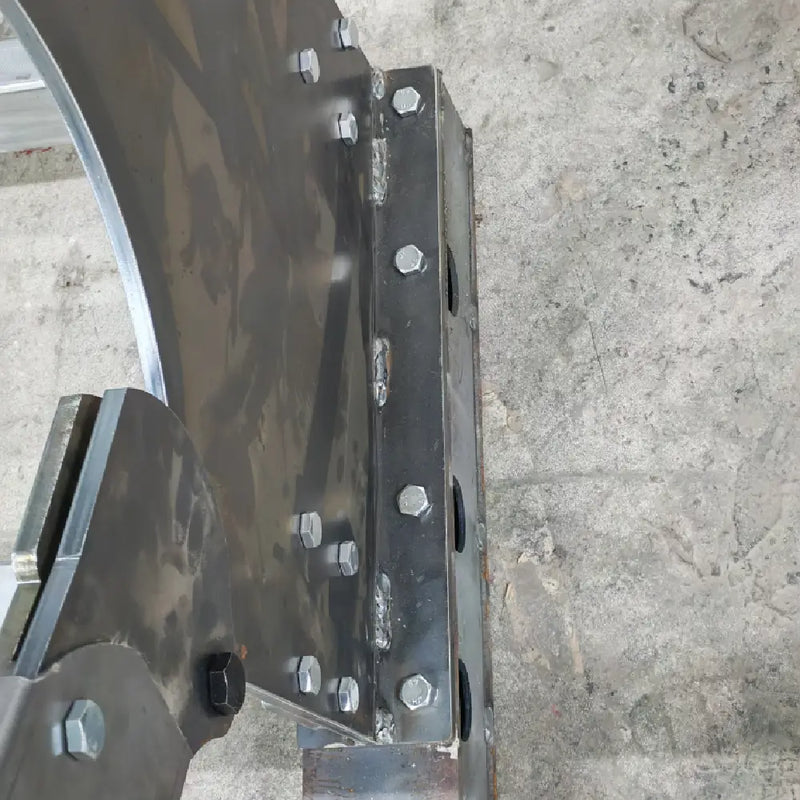

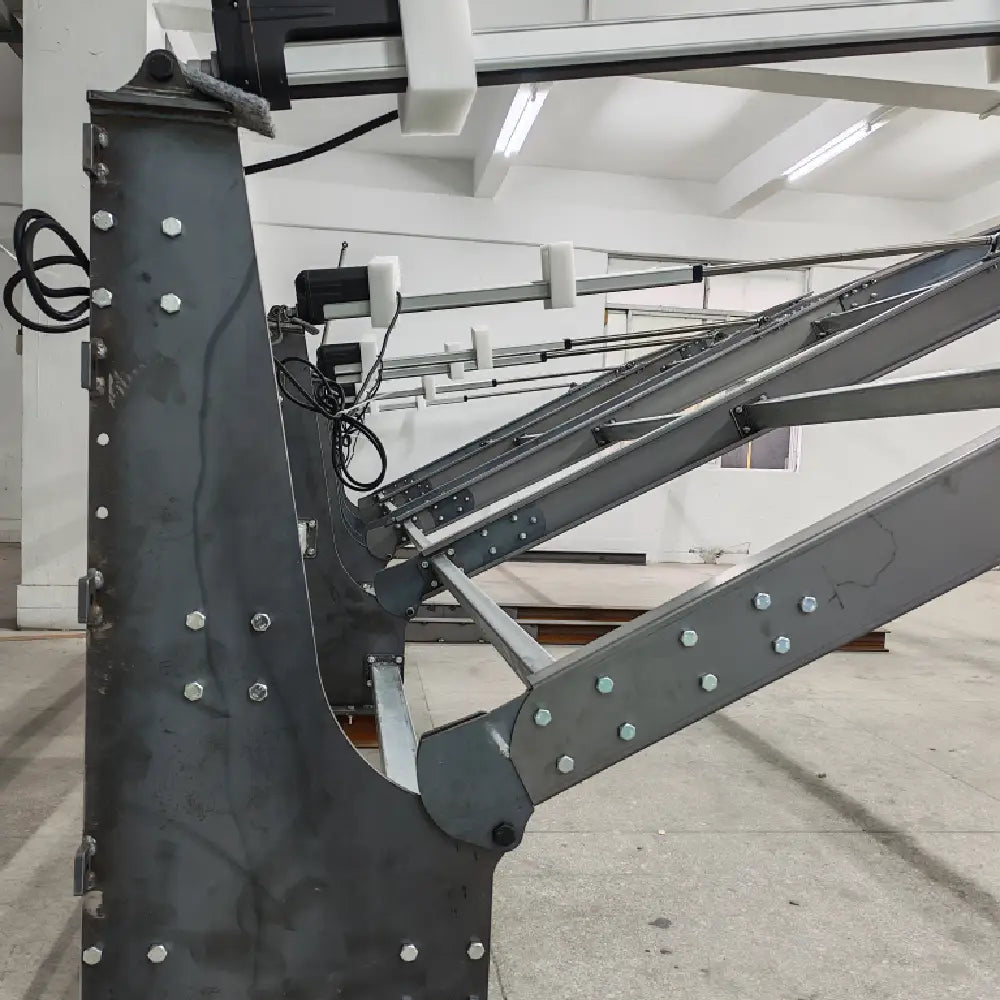

The system uses a 100 percent bolt locked assembly, which means you do not need welding, drilling, or permanent building modifications.
You can install the wall in a climbing gym, training facility, or at home while keeping the option to pack it down and relocate it later if needed.
Because the structure is modular, the wall can also be expanded or reconfigured as your training space evolves.
We supply freestanding climbing walls and climbing board systems to facilities around the world.
No matter where your gym or training facility is located, we can coordinate international delivery and provide support throughout the installation process.
Whether you are building a new climbing gym or adding a training board to an existing facility, we can help ensure your freestanding climbing wall arrives ready for installation.
| Feature | Specification |
|---|---|
| Wall type | Freestanding adjustable climbing wall |
| Frame structure | Structural steel |
| Hydraulic system | Dual hydraulic system rated to 3 tonnes |
| Adjustment range | -0.5° slab to 70° overhang |
| Panel material | 18mm commercial birch plywood |
| Board compatibility | Kilter, Moon, Tension, Quantum, spray walls |
| Safety systems | Mechanical locks, emergency stop, physical failsafe catch |
| Installation | Fully freestanding bolt locked assembly |
| Anchoring | No floor or structural fixings required |
| Use case | Climbing gyms, training facilities, performance centres |
| Shipping | Global shipping available |
We created this freestanding climbing wall to give you the flexibility that permanent climbing walls often cannot provide.
With a freestanding adjustable system, you can:
• install a climbing wall without structural building modifications
• adjust training angles to support different climbing styles
• scale your climbing infrastructure as your facility grows
• deploy climbing capacity faster than traditional wall construction
This allows you to add serious training infrastructure while keeping your facility flexible.
Add Climbing Capacity Without Permanent Construction
Expand your climbing infrastructure without modifying the building
We designed this freestanding climbing wall with a training board first approach.
The structure integrates naturally into climbing gyms, performance training centres, and homes that rely on system boards or training boards.
When we built the system, we prioritised:
• structural integrity
• low maintenance
• long term flexibility

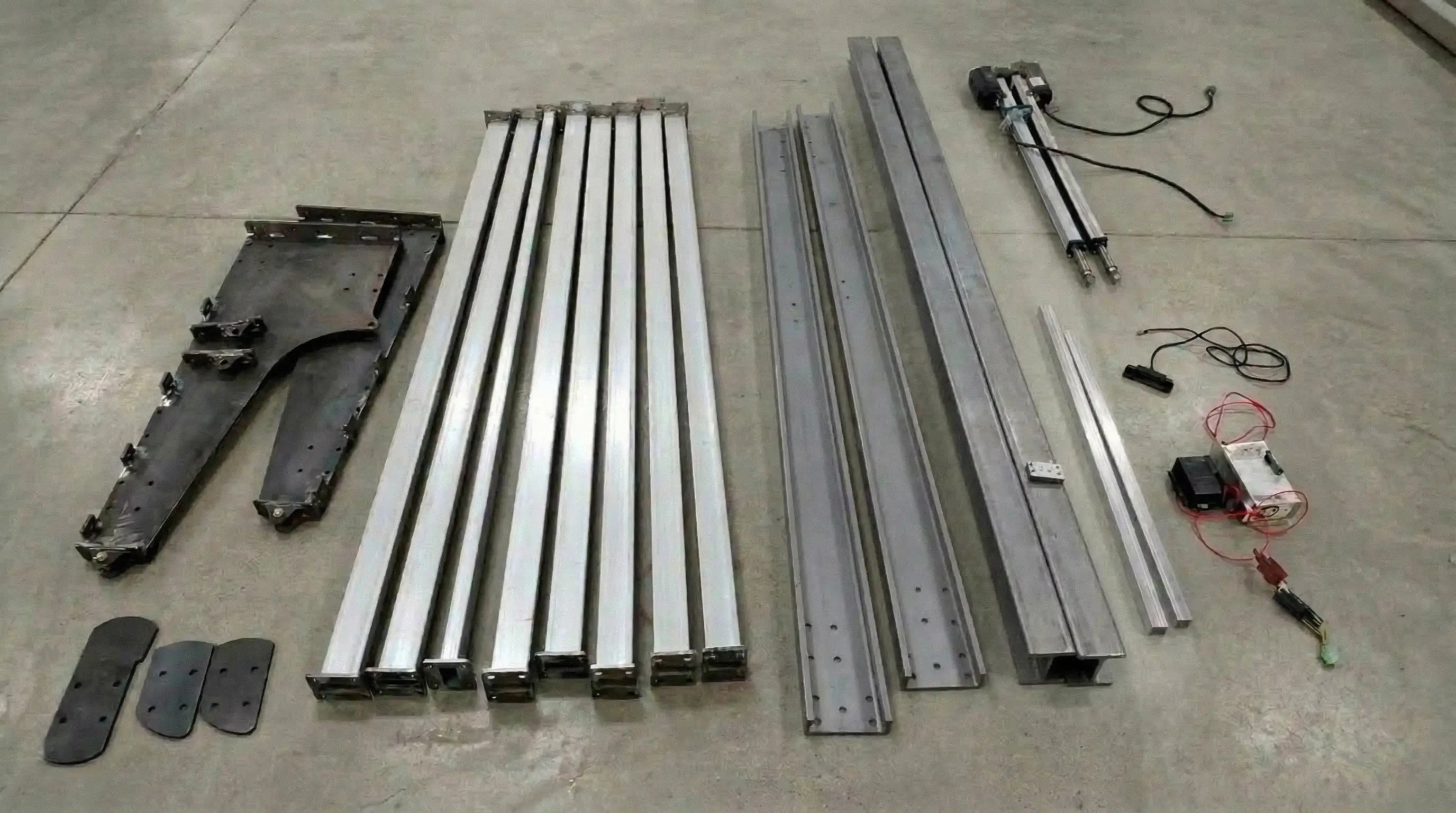

The wall uses a fully modular architecture, which means boards and components can be replaced or upgraded easily as new training systems emerge.
When your freestanding climbing wall arrives, we provide step by step installation documentation and remote technical support.
You do not need specialist construction skills to assemble the system. Every component uses bolt locked connections, which means:
• no welding
• no drilling
• no cutting
Once installed, the wall requires very little ongoing maintenance. Because the system is modular, you can upgrade or expand your training board setup at any stage.
Kilter Board Frame Compatible
Tension Board 2 (TB2) Compatible
Moonboard Compatible
Grasshopper Board Compatible
Quantum Board Compatible
Spray Wall Compatible
Contact us and let us know how we can help
