Adjustable Climbing Wall

Adjustable Climbing Wall

The Chompers Base Adjustable Climbing Wall is a commercial-grade freestanding training wall designed for climbing gyms, schools, universities, recreation centres and serious training facilities. Built around a structural steel frame, cold-pressed 18mm birch plywood panels and a hydraulic adjustment system, it allows facilities to create a wide range of climbing angles from one compact wall system.

The wall adjusts from -5° slab through to 70° overhang, giving route setters and coaches the flexibility to create easier technical climbs, steep power problems, board-style training and commercial route-setting challenges on the same structure.

Because the system is freestanding, it does not require anchoring into the building. This makes it suitable for leased spaces, facilities with structural limitations or projects where the wall may need to be relocated in the future.

The Base Adjustable Climbing Wall is available in standard and custom configurations, with selectable variants for size, hydraulic or static adjustment, bolt-hole patterns, panel finishes and commercial project requirements.

Applications

The Base Adjustable Climbing Wall is designed for facilities that need a versatile climbing surface without building multiple fixed-angle walls.

Recommended applications include:

  • Commercial climbing gyms
  • Dedicated training areas
  • System board zones
  • Spray walls
  • Competition training
  • University recreation facilities
  • School climbing programs
  • Government and recreation centres
  • Home training spaces
  • Facilities where permanent anchoring is not possible

The wall is especially useful for commercial gyms that want to provide multiple climbing angles within a smaller footprint. Route setters can use lower angles for technical climbing and steeper angles for strength, tension, power and dynamic movement.

Construction & Materials

The Base Adjustable Climbing Wall is built around a structural steel frame with a modular bolt-locked assembly. The climbing surface uses cold-pressed 18mm birch plywood panels fitted with replaceable M10 T-nuts.

Hydraulic models include a touchscreen angle control system and a commercial hydraulic adjustment mechanism. The system includes multiple redundancy features, including a triple hydraulic system, internal fail-safes and emergency stop functionality.

Panels can be customised to suit the project. Available options include custom bolt-hole patterns, panel colours, textures, frame finishes and branding requirements.

The system is designed for commercial use and built to support repeated angle changes, high-volume climbing and long-term facility operation.

Recommended Wall Types

The Base Adjustable Climbing Wall is suitable for multiple wall and board layouts.

Recommended configurations include:

  • Commercial adjustable training wall
  • Spray wall

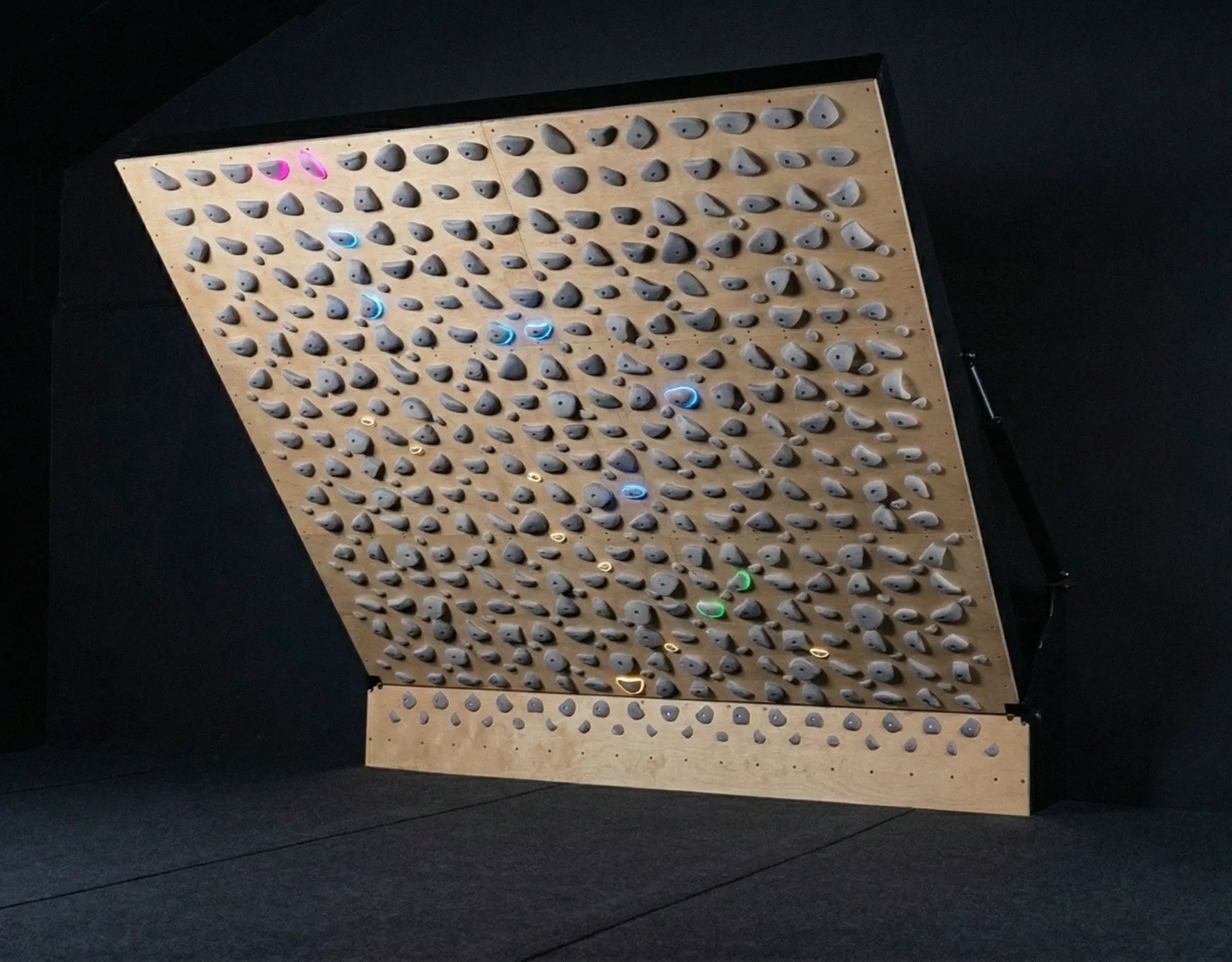

  • Kilter-style board layout
  • MoonBoard-style layout

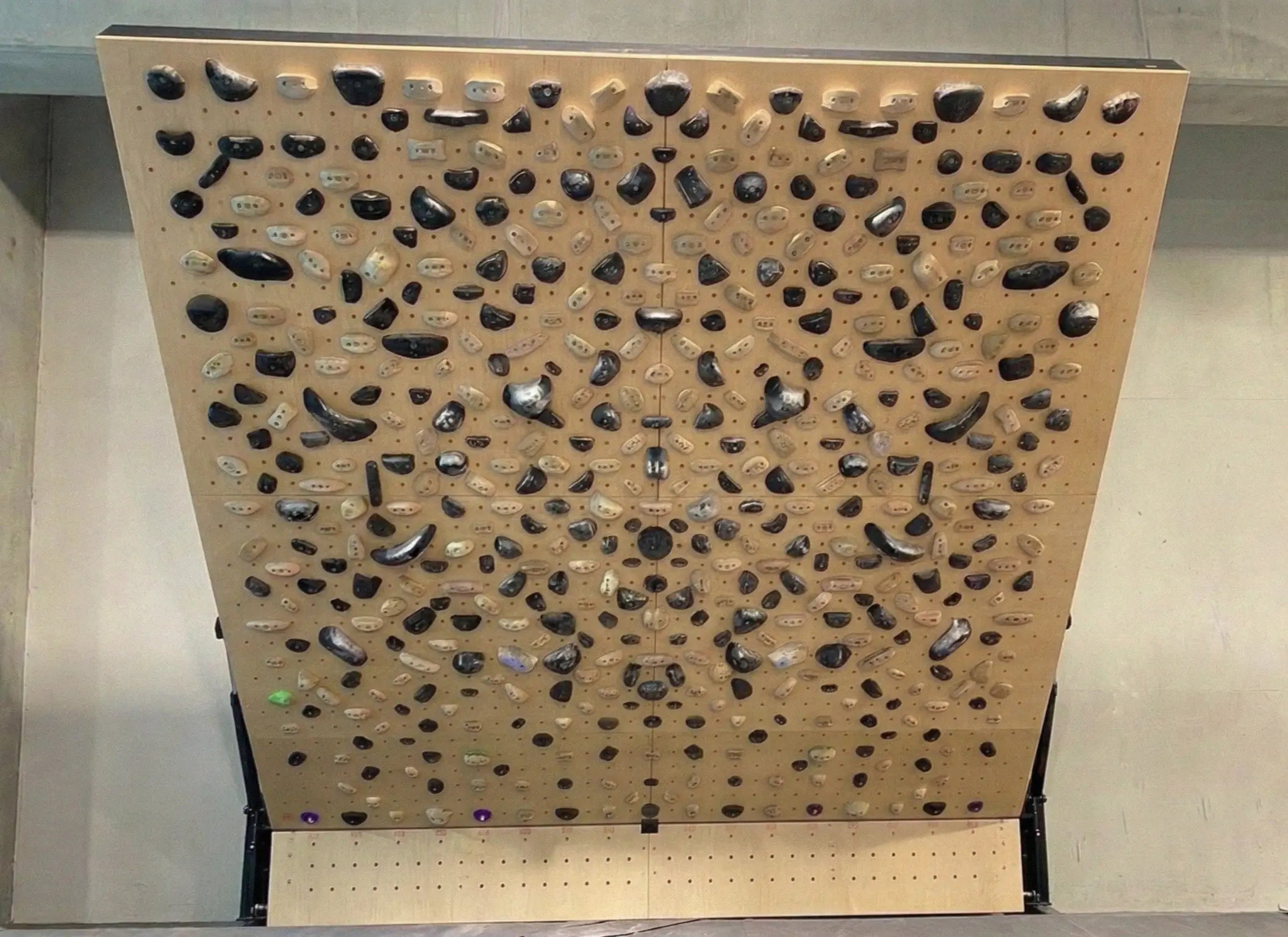

  • Tension-style board layout
  • Competition training wall
  • Home training wall
  • Coaching and youth training wall
  • Strength and conditioning climbing zone

Custom bolt-hole patterns can be supplied to match preferred training board layouts or route-setting requirements. This allows the wall to be configured around the facility’s intended use rather than forcing the buyer into one fixed pattern.

Commercial Delivery & Support

Chompers adjustable climbing walls can be supplied internationally, with a primary focus on Asia and Oceania.

Typical lead time is approximately 1–2 months depending on configuration, project scope and shipping requirements. The wall is designed as a modular system and can be self-installed where the buyer has appropriate tools, labour and site preparation.

For commercial projects, Chompers can provide guidance, installation supervision or broader project support if the wall is being supplied as part of a larger climbing gym build.

Maintenance is simple. Facilities should check the hydraulic system for drift and confirm bolts remain tight approximately once per year as part of routine inspection

Request a Quote
  • Internationally Recognised
  • EN-12572 Rated
  • Worldwide fulfillment
View full details

  • Freestanding Structure

    The wall does not require anchoring into the host building, making installation simpler and relocation more practical.

  • -5° To 70° Adjustment

    Adjust from slab to steep overhang to create a wide range of route-setting and training styles from one wall.

  • Commercial Steel Frame

    Built with a structural steel frame and modular bolt-locked assembly for commercial climbing environments.

  • Redundant Safety Systems

    Hydraulic models include redundancy, internal fail-safes and emergency stop functionality for safer operation.

1 4

A Freestanding Adjustable Wall For Commercial Training And Route Setting

The Chompers Base Adjustable Climbing Wall is designed for facilities that need maximum climbing variety from a single wall system. Instead of building separate slab, vertical and overhanging training walls, operators can use one adjustable structure to create a broader range of climbing experiences.

The wall can be adjusted from -5° through to 70°, allowing route setters to create low-angle technical climbs, vertical movement, steep commercial problems and high-intensity training routes. This makes the system suitable for commercial climbing gyms, training centres, universities, schools and recreation facilities.

The freestanding design is one of the main advantages of the system. Because the wall does not need to be anchored into the building structure, it is easier to install in leased properties, multi-use spaces and facilities where permanent building modification is difficult or undesirable.

The structure is built from steel and assembled with a modular bolt-locked system. This makes the wall easier to transport, install, disassemble and relocate if the facility changes location or layout in the future.

The climbing surface uses cold-pressed 18mm birch plywood panels with replaceable M10 T-nuts. Panels can be customised with different bolt-hole patterns, colours, textures and branding options. This allows the wall to support spray wall layouts, training board layouts and commercial route-setting needs.

For commercial gyms, the Base Adjustable Climbing Wall provides a practical way to expand training capacity, improve route-setting variety and offer a premium training feature without the complexity of a fully custom fixed wall build.

Technical Specifications

  • Freestanding adjustable climbing wall system
  • No building anchoring required
  • Structural steel frame
  • Modular bolt-locked assembly
  • Adjustable angle range: -5° to 70°
  • Hydraulic adjustable and static angle options available
  • Touchscreen angle adjustment on hydraulic models
  • Cold-pressed 18mm birch plywood climbing panels
  • Replaceable M10 T-nuts
  • Custom bolt-hole patterns available
  • Customisable kickboard height
  • Custom panel colours and textures available
  • Custom frame finishing available
  • Branding and white-label options available
  • Triple hydraulic redundancy system on hydraulic models
  • Electro-hydraulic system with internal fail-safes
  • Emergency stop functionality
  • Designed to EN 12572 standards
  • Fully modular structure
  • Can be expanded, detached, relocated and disassembled
  • Suitable for commercial gyms, training facilities, schools, universities, recreation centres and home walls
  • Typical lead time: 1–2 months
  • Annual maintenance: check hydraulic drift and bolt tightness

Ideal For

  • Commercial Climbing Gyms

    Build engaging climbing experiences with products designed for high-traffic commercial environments, frequent route-setting cycles and long-term durability.

  • Competition Walls

    Create modern competition-style movement, coordination challenges and visually distinctive routes using commercial-grade climbing products.

  • Training Facilities

    Support athlete development, strength training and movement practice with products designed for performance-focused climbing environments.

  • Universities and Schools

    Create safe, durable and engaging climbing facilities suitable for education, recreation and structured climbing programs.

  • Route Setters

    Expand route-setting possibilities with products that support modern movement, creative problem design and versatile climbing experiences.

  • Recreation Centres

    Add climbing experiences that appeal to a broad range of users while maintaining durability and ease of maintenance.

Product Gallery

Featured Projects

Explore our climbing wall installations and custom projects

Climbing Wall Installation

Climbing Wall Installation
Climbing Wall Design

Climbing Wall Design
Freestanding Climbing Wall

Freestanding Climbing Wall

Related Categories

FAQ

What is the angle range of the Chompers adjustable climbing wall?

The wall can adjust from -5° slab through to 70° overhang, allowing facilities to create a wide range of climbing and training styles.

Does the wall need to be bolted into the building?

No. The wall is completely freestanding and does not require anchoring into the host building structure.

Is the wall suitable for commercial climbing gyms?

Yes. The wall is designed for commercial gyms, training facilities, universities, schools and recreation centres.

Can I use it as a training board?

Yes. Custom bolt-hole patterns can be supplied to suit spray walls, board-style training layouts and other route-setting requirements.

What maintenance is required?

Facilities should check the hydraulic system for drift and confirm bolts remain tight approximately once per year.

Why choose a Chompers adjustable wall instead of a fixed wall?

A Chompers adjustable wall offers more route-setting variety, easier installation, lower maintenance complexity and greater relocation flexibility than many fixed wall solutions.
